200W Portable Pulse Energy Fiber Laser Cleaning Machine High-efficiency Rust Laser Remover Tool
Principles and Fundamentals of Fiber Laser Cleaning
Cleaning with lasers is an important process for many industries around the world, and while it has similarities to other laser processes, it has some unique attributes which set it apart. We have covered these below.The basics
Before examining the specifics in more detail, these are the basic principles and fundamentals of fiber laser cleaning:
· It is a process completed using a fiber laser, as opposed to a crystal or gas laser
· It is a newer cleaning process, replacing more traditional methods such as media blasting, dry-ice blasting or cleaning using chemical solvents
· It is a non-contact, non-abrasive process
· It is an efficient, safe, environmentally-friendly and cost-effective process
· It allows users a great deal of control over power output, wavelength and ablation depth
Specification List
| Items | Parameters |
| Cleaning Power | 50W | 100W | 200W | 500W |
| Current Consumption | Pout = Ponm / 5A | Pout = Ponm / 5A | Pout = Ponm / 5A | Pout = Ponm / 25A |
| Max. Power | 400W | 600W | 900W | 6.5KW |
| Power Voltage | AC 110/220V | AC 110/220V | AC 110/220V | AC 110/220V |
| Cooling Method | Air Cooling | Air Cooling | Air Cooling | Water Cooling |
| Laser Class | Level 4 | Level 4 | Level 4 | Level 4 |
| Pulse Energy | 1.5mJ | 1.5mJ | 8mJ | 30mJ |
| Fiber Optical Cable | 5m(Customizable) | 5m(Customizable) | 5m(Customizable) | 7m(Customizable) |
| Laser Wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
| Scan Width | 1-120mm | 1-120mm | 1-120mm | 1-160mm |
| Preheat Time | 10-30s | 10-30s | 10-30s | 10-30s |
| Working Condition | A flat place without vibration and impact | A flat place without vibration and impact | A flat place without vibration and impact | A flat place without vibration and impact |
| Working Temperature | 0-60 ℃ | 0-60 ℃ | 0-60 ℃ | 0-60 ℃ |
| Storage Temperature | -10~+60℃ | -10~+60℃ | -10~+60℃ | -10~+60℃ |
| Machine size | L462 x W 260 x H562 (855mm with pull rod) | L647 x W 440 x H859mm | L647 x W 440 x H859mm | L1100 x W 840 x H1150mm |
| Net Weight | 32Kgs | 70Kgs | 70Kgs | 250Kgs |
Main Features of Laser cleaning machine
| 1, High-tech laser no-contact cleaning, no damage to the workpiece. |
| 2, Auto-focusing, precision, and no dead-end cleaning ability. |
| 3, No consumables, cost-effective. |
| 4, No cleaning medium is needed. |
| 5, Smart and easy operation |
| 6, Portable with light cabinet and universal wheels. |
| 7, High cleaning efficiency, time-saving. |
| 8, Handheld and automatic mode optional |
| 9, System stable, free maintenance. |
Service
1). 2 years quality warranty. The main parts(excluding the consumables) are free of charge(some
parts will be maintained) when if any problem during the warranty period.
2). Lifetime maintenance free of charge.
3). Free training course for any application.
4). 24 hours of online service, free technical support.
5). The machine has been strictly tested and inspected before delivery.
6). Door to door technical services(We have professional engineers to offer machine installation
Product Tags:
|
|

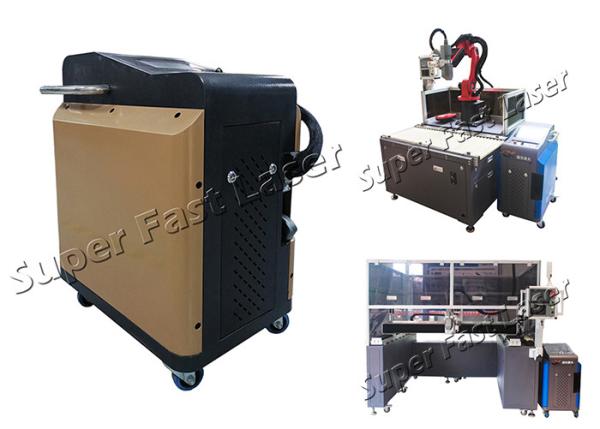

200W Portable RAYCUS 8mJ Pulse Fiber Laser Cleaning Machine Images
|
